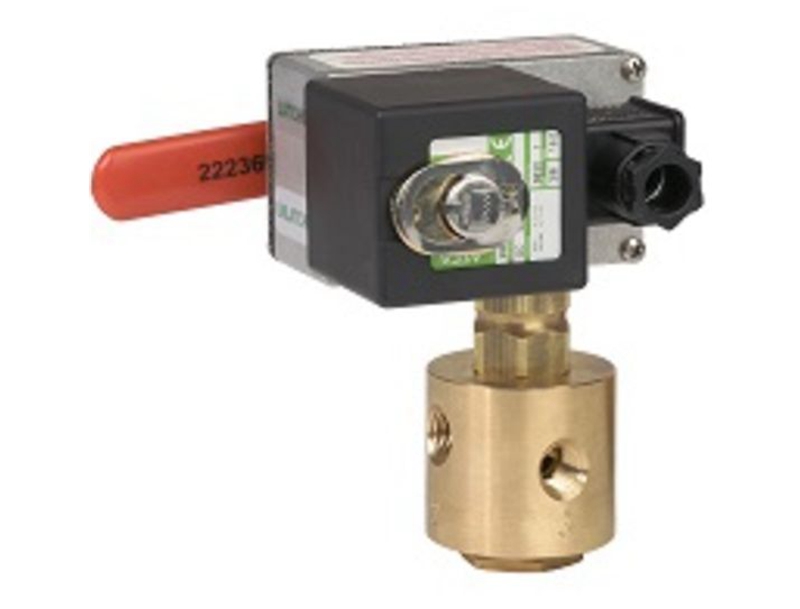

ASCO電磁閥 8307系列 先導閥

ASCO電磁閥 8307系列  先導閥

ASCO 307-S系列,也稱為8307 ,是一系列電磁先導閥，專為惡劣環境中的

重型工業應用而設計。它們的高流量、堅固的不銹鋼或黃銅結構以及較長的

使用壽命特別適合用于鉆機和煉油廠。閥門是ATEX 94/9/EC指令批準的。

規格

閥門驅動手動復位，電磁閥，電磁閥空氣先導

閥體材料黃銅、不銹鋼

介質空氣、惰性氣體、輕油、水

管道/端口尺寸%4“;"; /2;”; 3/8英寸

端口類型NPTF

功能3路-3/2通用

流量.43至.86 Kv

電壓24 DC、48DC、 24 AC、115AC、230 AC |50、60

最大壓差/最大工作壓力真空至10.3巴，真空至150 PSIG

操作環境危險、腐蝕性、室外

標準/法規P65、ATEX 0-20區、ATEX 1-21區、CUTR/EAC、IEC 60529 (入

口保護)、EC Ex0-20區，IECEx 1-21區，IP66、IP67、 SILyunlian inquiry and quotation [email protected]

The ASCO Series 307-S, also known as 8307, is a line of solenoid pilot valves designed for heavy-duty industrial applications in hostile environments. Their high flow capacity, rugged stainless steel or brass constructions, and long service life are especially well suited for use in drilling rigs and refineries. The valves are ATEX 94/9/EC Directive approved.

Specifications

Valve ActuationManual Reset, Solenoid, Solenoid - Air Pilot

Body MaterialBrass, Stainless Steel

MediaAir, Inert Gas, Light Oil, Water

Pipe / Port Size? "; "; ? "; "; 3/8 "

Port TypeNPTF

Function3 way - 3/2 Universal

FlowFrom .43 to .86 Kv

Voltage24 DC, 48 DC, 24 AC, 115 AC, 230 AC | 50, 60

Max Differential / Max Operating PressureVacuum to 10.3 Bar, Vacuum to 150 PSIG

Operating EnvironmentHazardous, Corrosive, Outdoor

Standards / RegulationsIP65, ATEX Zone 0-20, ATEX Zone 1-21, CUTR / EAC, IEC 60529 (Ingress protection), EC Ex Zone 0-20, IEC Ex Zone 1-21, IP66, IP67, SIL
