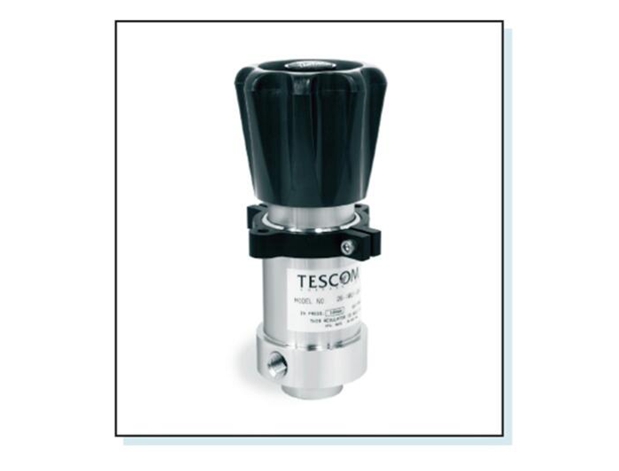

TESCOM減壓閥pressure reducing valve26-1000

TESCOM減壓閥pressure reducing valve26-1000

高壓 / 減壓

最大入口壓力 6,000 及 10,000 PSIG/出口壓力范圍5 - 10,000 PSIG

在緊湊的單個器件內裝有七個調節器

26-1000 系列

技術規格

? 工作參數

壓力等級根據 ANSI/ASME B31.3標準

最大額定入口壓力：

不銹鋼 . . . . . . . . . . . . . . . . . . . . . . 10,000 PSIG

黃銅 . . . . . . . . . . . . . . . . . . . . . . . . . 6,000 PSIG

出口壓力范圍. . . . . . . . . . . 5-500, 5-800, 10-1500,

15-2500, 25-4000, 50-6000, & 200-10,000 PSIG

設計試驗壓力. . . . . . . . . . . . . . 150% 最大額定壓力

泄漏. . . . . . . . . . . . . . . . . . . . . . . . . . . . 無氣體泄漏

環境工作溫度. . . . . . . . . . . . . . . -40° F 至 +165° F

(-40° C 至 +74° C)

額定流量 . . . . . . . . . . . . . . . . . . . . . . . . Cv = 0.06

? 接觸介質的材料

閥體. . . . . . . . . . . . . . . . . . . . . . 316 不銹鋼或黃銅

閥帽 . . . . . . . . . . . . . . . . . . . . . . . 300 系列不銹鋼

20 微米濾清器. . . . . . . . . . 300 系列不銹鋼或黃銅

TESCOM pressure reducing valve 26-1000

High pressure/reduced pressure

Maximum inlet pressure 6000 and 10000 PSIG/outlet pressure range 5-10000 PSIG

Equipped with seven regulators in a compact single device

26-1000 series

technical specifications

Operating parameters

Pressure rating according to ANSI/ASME B31.3 standard

Maximum rated inlet pressure:

Stainless steel 10,000 PSIG

Brass 6,000 PSIG

Outlet pressure range 5-500, 5-800, 10-1500,

15-2500, 25-4000, 50-6000, & 200-10,000 PSIG

Design test pressure 150% maximum rated pressure

Leakage No gas leakage

Environmental working temperature- 40 ° F to+165 ° F

(-40 ° C to+74 ° C)

Rated flow rate Cv = 0.06

Materials in contact with the medium

Valve body 316 stainless steel or brass

Valve cap 300 series stainless steel

南京云聯 電氣

20 micron filter 300 series stainless steel or brass
