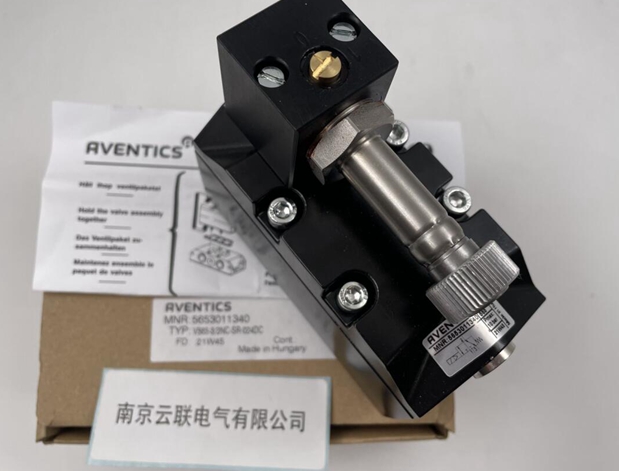

安沃馳AVENTICS氣缸氣動閥門Pneumatic Valve 5653011340

安沃馳AVENTICS氣缸氣動閥門Pneumatic Valve 5653011340

工作壓力范圍 -0.9 ... 10 bar

控制壓力 最小/最大 2.5 ... 10 bar

最低 / 最高環境溫度 0 ... 50 °C

介質溫度范圍 0 ... 50 °C

介質 壓縮空氣

顆粒大小 max. 5 μm

壓縮空氣中的含油量 0 ... 5 mg/m3

額定流量Qn 850 l/min

先導排氣 帶先導集中排氣

防護等級 帶接口 IP65

保護電路 Z-二極管

反向極性保護 反極性保護

發光二極管狀態顯示 黃色

暫載率 100 %

固定螺栓 十字型槽 DIN EN ISO 4757-Z1

擰緊螺栓的最小扭力 1.3 Nm

重量 0.082 kg

Rexroth Rexroth Pneumatic Valve 5653011340

Working pressure range -0.9... 10 bar

Control pressure min/max 2.5... 10 bar

Min/Max ambient temperature 0 50 °C

Medium temperature range 0 50 °C

Medium compressed air

Particle size max. 5 μ m

The oil content in compressed air is 0 5 mg/m 3

Rated flow Qn 850 l/min

Pilot exhaust with pilot centralized exhaust

Protection level with interface IP65

Protection circuit Z-diode

Reverse polarity protection

LED status display in yellow

Temporary load rate 100%

Fixed bolt cross groove DIN EN ISO 4757-Z1

Rexroth Rexroth Pneumatic Valve 5653011340

Working pressure range -0.9... 10 bar

Control pressure min/max 2.5... 10 bar

Min/Max ambient temperature 0 50 °C

Medium temperature range 0 50 °C

Medium compressed air

Particle size max. 5 μ m

The oil content in compressed air is 0 5 mg/m 3

Rated flow Qn 850 l/min

Pilot exhaust with pilot centralized exhaust

Protection level with interface IP65

Protection circuit Z-diode

Reverse polarity protection

LED status display in yellow

Temporary load rate 100%

Fixed bolt cross groove DIN EN ISO 4757-Z1
